Reconstructing the Vocal Tract with Differentiable Acoustic Simulation - Interactive Web Demo

Motivation

Learning to speak is an inverse problem. An infant babbles to discover the non-linear mapping between their articulatory motor commands and their speech, learning the controls required to produce language. Most remarkably, children solve this inverse problem without ever seeing paired data between the muscle configuration of their vocal tract and the speech it produces.

In robotics, this type of sensorimotor learning is accelerated by differentiable simulators such as Mujoco MJX, Taichi and Warp. These simulators allow gradients from a physical environment to backpropagate directly to a policy, enabling efficient learning of locomotion and manipulation. But to learn the physical actions of your mouth, tongue, etc. that form language, no equivalent computational infrastructure exists. Our differentiable simulator provides the infrastructure to study speech as a physically-grounded learning problem.

Acoustic Tubes

Although the space of all possible speech sounds is large, the vocal tract's geometry moves in relatively fewer dimensions over time. We model the vocal tract as an acoustic tube, a one-dimensional tube whose cross-sectional area varies along its length. Changes in the tube's shape causes changes in its acoustic properties, allowing for the formation of different vowels and consonants

We find that simulation in the frequency domain enables parallel evaluation across frequencies and short-time analysis windows, delivering a 70x speedup over time-domain wave solvers on an RTX 4090. Frequency-domain synthesis also yields a significantly smoother optimization landscape for gradient descent.

Explore how different tube geometries produce different vowels below! We can fit the area of the tube to a speech sample using gradient descent. The geometry is parameterized by a Multiplicative Filter Network (MFN), a type of neural field. Neural fields, and neural networks more generally, implicitly regularize deformations across space and time, allowing gradient descent to recover smooth kinematic trajectories without hand-crafted regularizers.

Real Speech Optimization WebGPU Demo

Below we provide a web demo where you can fit your own speech samples with our simulator! Both the forward and backward pass of our simulator are implemented in WebGPU. The code was ported from our Python implementation with the help of coding agents.

If the demo doesn't work, try using Chrome, which we found can be 2x faster than Firefox or Safari.

Generating Dynamic Vocal Tract MRI

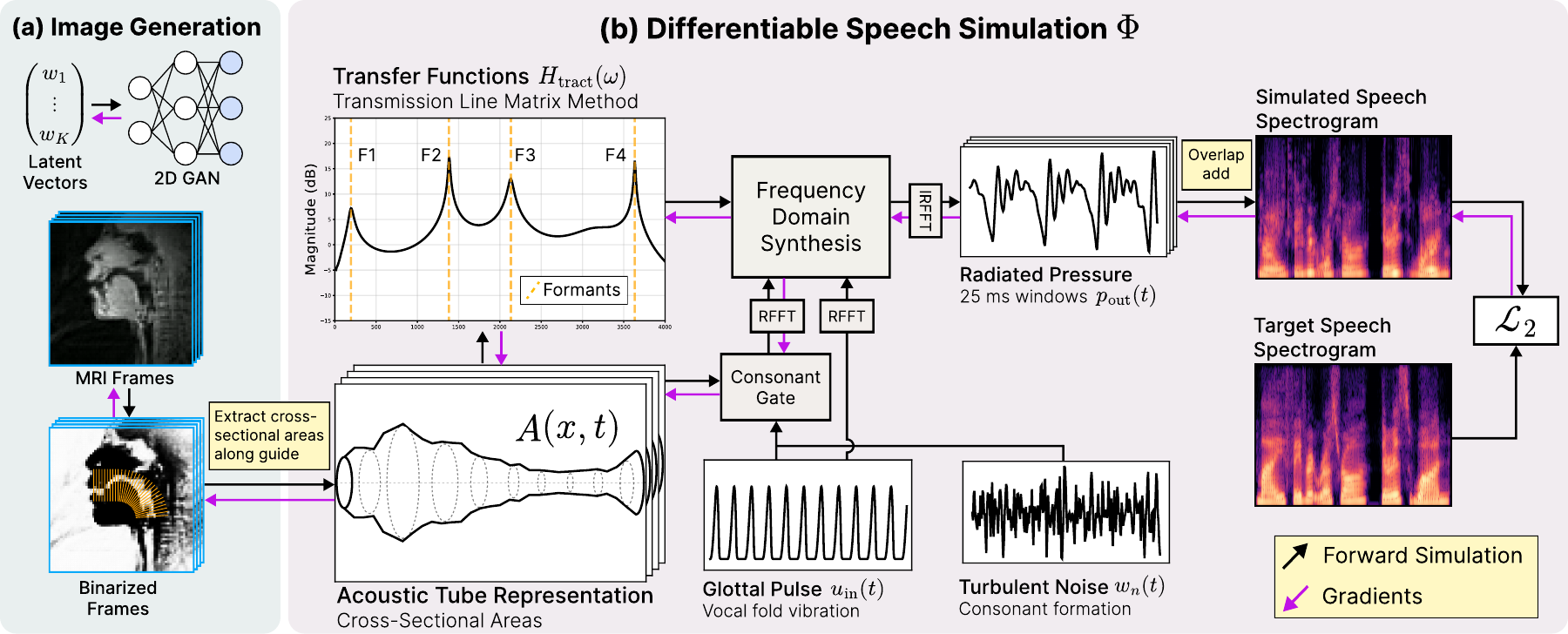

diffTLM can also interface with visual generative models. We differentiably extract the cross-sectional area of the vocal tract from the generated video, then pass the geometry to our simulator to synthesize speech. Gradient propagation through the simulator and the MRI generator fits the MRI to the target audio.

Acoustic Tubes as a Neural Representation

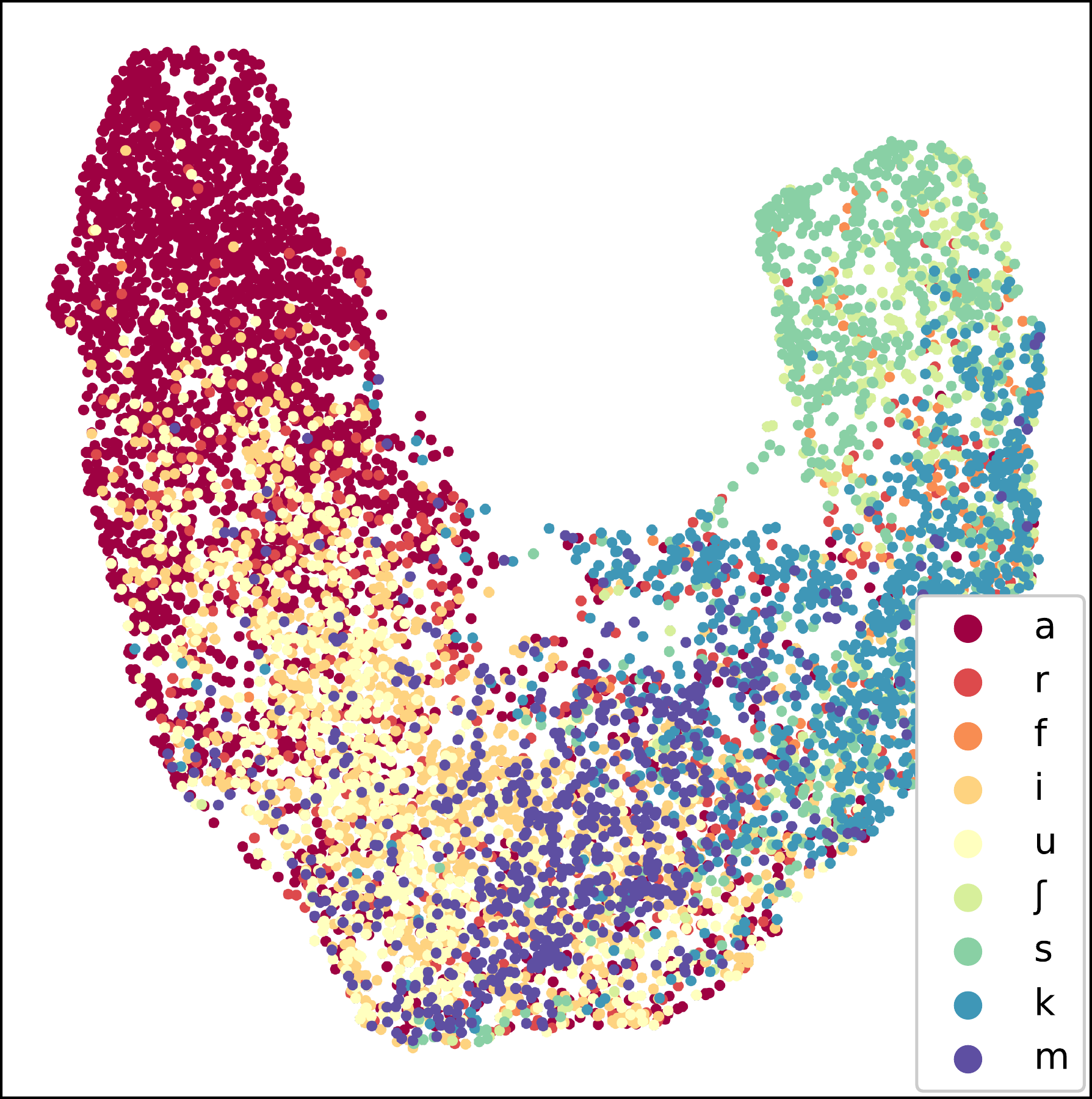

We also investigate how acoustic tubes can be used as a neural representation. We train an autoencoder on LibriTTS to encode speech into area functions, which are decoded into speech using diffTLM. Because no paired data is required between speech and vocal tract kinematics, the entire process is self-supervised. On the right we project encoded area functions onto a 2D UMAP projection. We find that the area functions groups similar phonemes together. Consonants such as /s/ and /k/ are clustered on the right, while vowels like /a/ are clustered on the left.

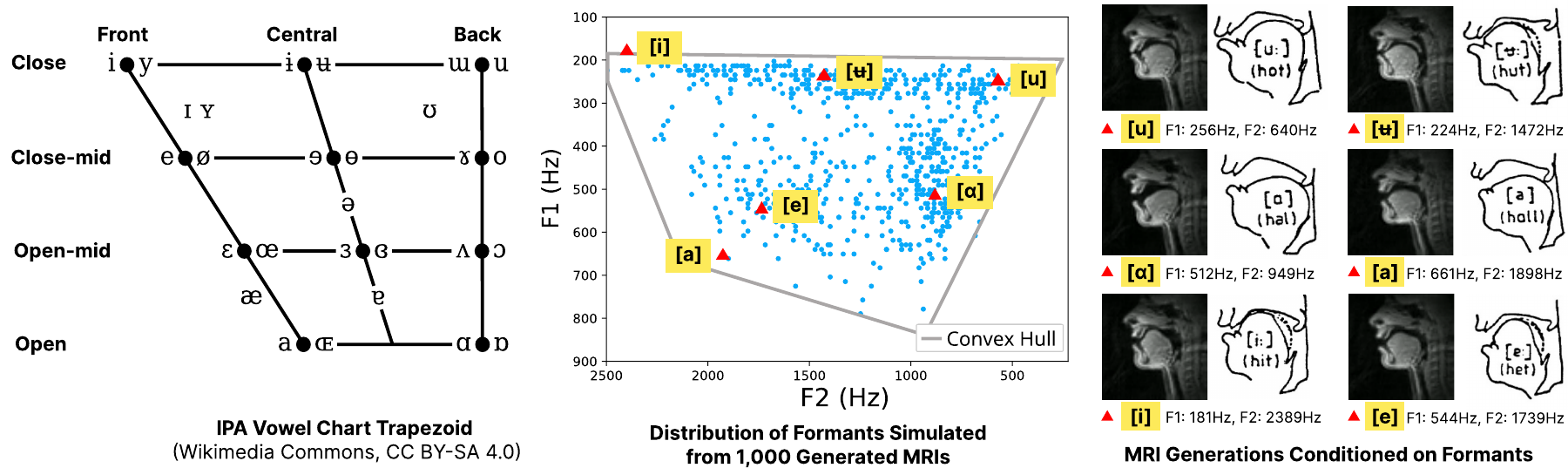

Finally, we explore the space of vowels sampled from our MRI generator. We plot the first two formants simulated from 1,000 generated MRIs, and observe that they form a convex hull, similar to the space of vowels in the IPA chart. Our learned representations align well with the existing linguistics literature, and we hope that this work will enable future work in language, sensorimotor control and more!

@inproceedings{Chen2026DiffTLM,
  author = {Chen, Eric Ming and Lee, Jin Woo and Sitzmann, Vincent},
  title = {Reconstructing the Vocal Tract with
           Differentiable Acoustic Simulation},
  booktitle = {Advances in Neural Information Processing Systems},
  year = {2026}
}
